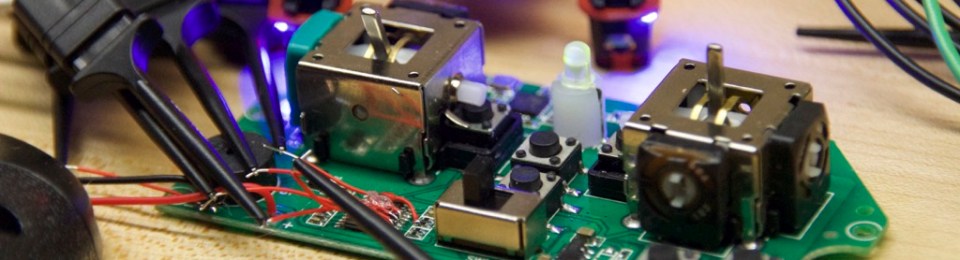

Just a few years ago, palm sized radio controlled toys were nothing more than a dream. Today, you can find them at every mall, toy store, and hobby shop. [Alvaro] couldn’t resist the tiny Estes Proto X quadcopter. While he enjoyed flying the Proto X, he found that the tiny controller left quite a bit to be desired. Not a problem for [Alvaro], as he embarked on a project to reverse engineer the little quad.

Inside the quadcopter and its lilliputian radio, [Alvaro] found a STM8 based processor and an Amiccom A7105 2.4G FSK/GFSK Transceiver radio. The A7105 is well documented, with datasheets easily obtained on the internet.  The interface between the processor and the radio chip was the perfect place to start a reverse engineering effort.

With the help of his Saleae logic analyzer, [Alvaro] was able to capture SPI data from both the quadcopter and the transmitter as the two negotiated a connection…

View original post 224 more words
